Griduino Kit

Dedicated GPS tracker to know where you are and the distances to grids around you. Announces grid line crossings!

$250

Buy now

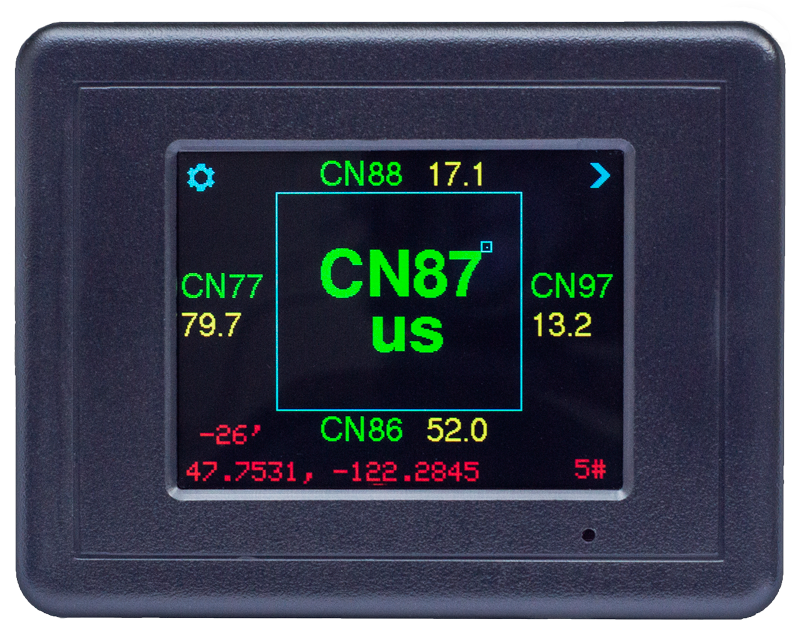

Griduino screen

GPS for Grid Squares

Maidenhead Grid Locators are a compact notation to identify any place on the planet. Four characters is an area about 100 miles on a side, 'CN87'. Six characters narrow it down to about 4 miles on a side, 'CN87us'.

Ham radio operators use grid names to identify distances and directions. Carry this in your car or backpack to always know where you are. Grids are easy to handle with Griduino!

Distance

Put this in your vehicle and you'll always know distances to nearby grids.

Grid names

See the names of nearby grids at a glance.

Altitude

Always know your altitude above sea level.

No distractions

Keep your eyes on the road with audible announcements when crossing a grid line.

Time

Displays accurate time in both GMT and local time.

Open source

Add new features. Entire source code available on GitHub.

Hardware

Grid squares + Arduino = Griduino!
This is a high-performance platform with a bright colorful display and audio output. You can develop the applications in the Arduino programming environment with plenty of existing software libraries, drivers and examples.

Kit assembled with hand tools and soldering iron

Feather M4 Express SAMD51, 120 MHz Processor

No tiny surface-mount parts

3.2" TFT Touchscreen Display

GPS -165 dBm sensitivity, 66 channel

12-bit DAC audio, amp and speaker

Volume controlled by digital potentiometer

BMP-388 barometric sensor, 0.5-meter sensitivity

Powered by USB or 10-15 vdc

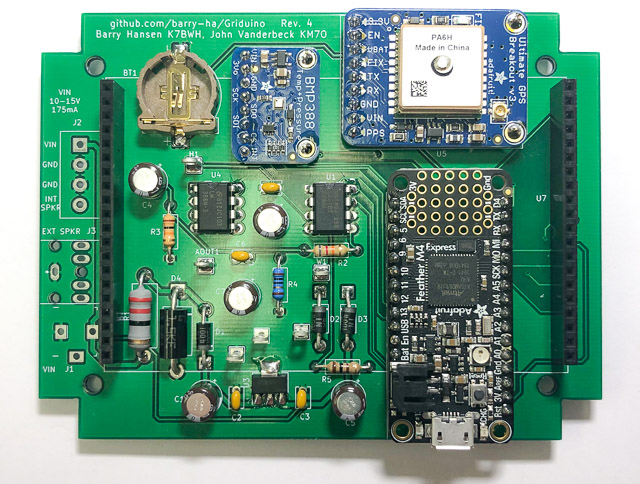

Assembled Griduino
